INSTALLATION

Firmware & Drivers

Firmware: At the time this manual was written there are no firmware updates available for Pioneer DDJ-REV1. However always check Pioneer Dj website for any firmware updates.

Drivers: No drivers are required for the Pioneer DDJ-REV1 to operate. The device is a USB class compliant and your Operating System will auto-install the necessary drivers when connected with a USB cable.

VirtualDJ Setup

Download and install VirtualDJ from our Downloads Page
(in case you have not done already)

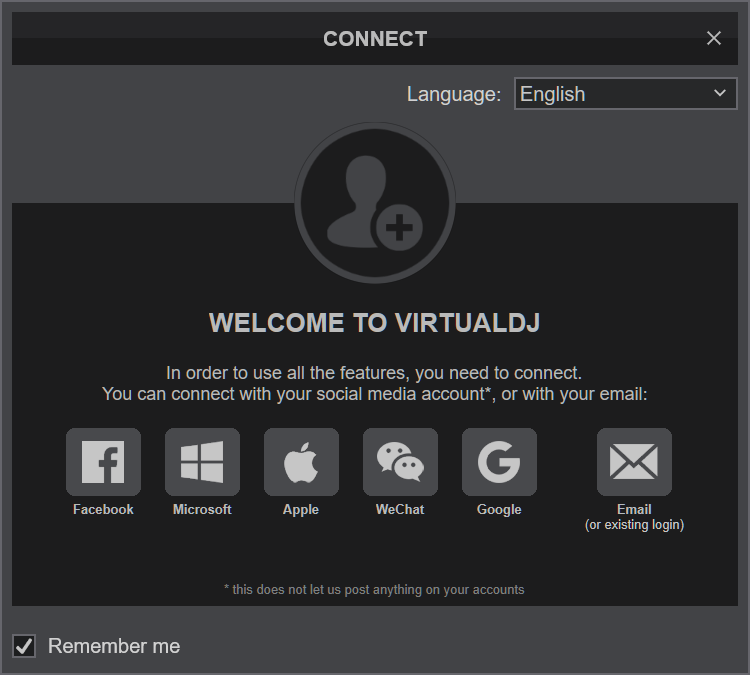

Once VirtualDJ is launched, a Login Window will appear. Please login with your preferred method from the ones provided.

A Pro Infinity, a Pro Subscription or a DDJ-REV1 Plus License is required to fully use the Pioneer DDJ-REV1.
Without any of the above Licenses, the controller will operate for 10 minutes each time you restart VirtualDJ.
Buy a license

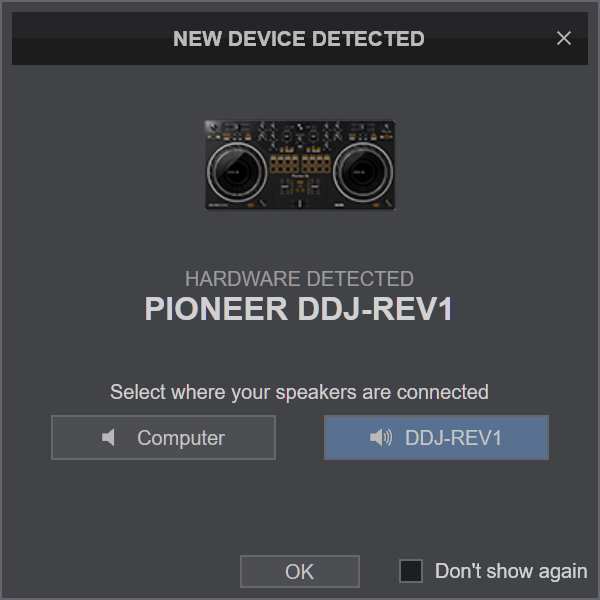

A detection window will appear next verifying proper connection with the DDJ-REV1.
Click on the "DDJ-REV1" button for VirtualDJ to apply the predefined audio setup with the built-in sound card of the Pioneer DDJ-REV1. You can still change that from Settings->AUDIO tab.

Click to OK.

The unit is now ready to operate.

MIDI Operation

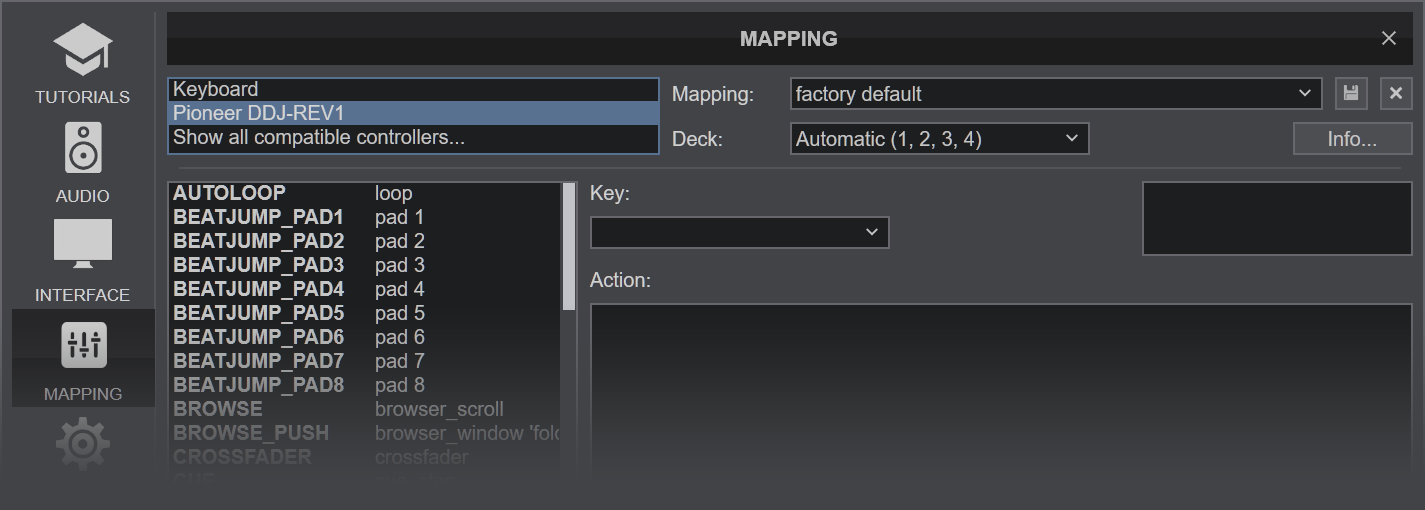

The unit should be visible in the CONTROLLERS tab of Config and the “factory default” should be available/selected from the Mappings drop-down list. The factory default Mapping offers the functions described in this Manual, however those can be adjusted to your needs via VDJ Script actions.

Find more details at VDJ Pedia

AUDIO Setup

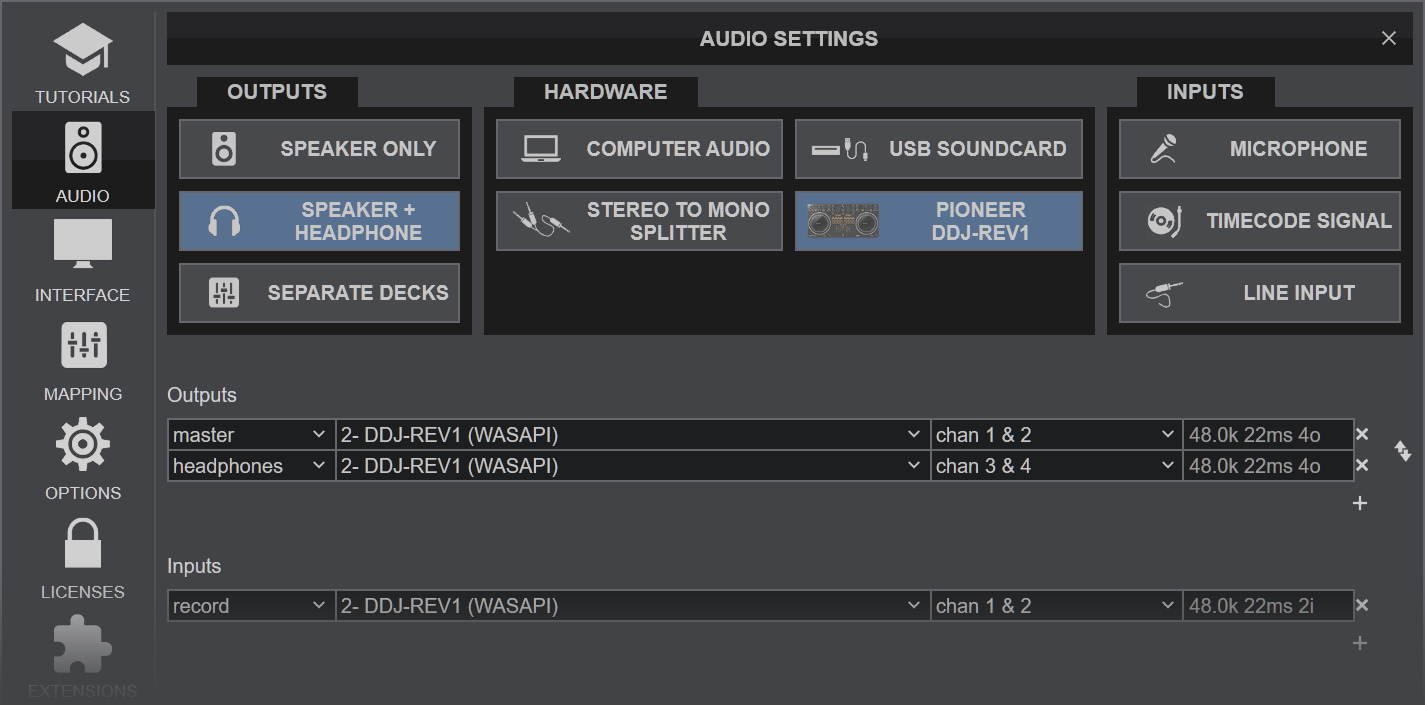

The unit has a pre-defined Audio setup and a special button in the AUDIO tab of Config to provide that. Alternative Audio setups can be applied in the same window.

For further software settings please refer to the Manuals of VirtualDJ Layout
