• <pos x="" y="" /> : Give the position top-left X,Y pos of the area on the screen where the menu will be offered when clicked. Read further in Skin Element Position

• <size width="" height="" /> : Give the width and height of the area on the screen where the menu will be offered when clicked.

  Graphics : You can either point to a part in your skin image using x,y coordinates ...

• <up x="" y="" /> : Give the coordinate of the graphic to use while the menu is not displayed

• <over x="" y="" /> : Give the coordinate of the graphic to use when mouse is over the menu area

• <down x="" y="" /> : Give the coordinate of the graphics to use while the menu is displayed

  ..or using vector graphics in your xml ...
  <up shape="" color="" border="" border_size="" radius="" gradient="" color2=""/>
  (and same for <down> and <over>. See Skin button

  Menu Items:

• <item text="" action="" check="" hascheck="" visibility="" /> : Use an item child for each item offered from the menu. The item child has the following parameters.[list]
• text="" : Provide the displayed text of the menu item. Have text="-" to display a separator line in your menu, instead of an item

• action="" : Provide a VDJ Script action that will be executed when the menu item is clicked.

• hascheck="" : If set to true (default value) , the menu item will offer a check-mark depending of the true/false status of the action or the check parameters. If hascheck is set to false, then no check-mark will be offered for the menu item, regardless the status of the action and check parameters..

• check="" : A check-mark will be displayed at the left side of the menu item, if the action of the check parameter returns true. If no check parameter is provided, the check-mark will be displayed if the action parameter returns true.

• visibility="": Provide a VDJ Script action that returns true|false to show/hide a menu item under certain conditions.

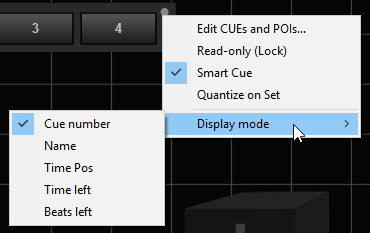

<menu>
	<pos y="315" x="324"/>
	<size width="14" height="14"/>
	<off y="1683" x="757"/>
	<over y="1683" x="777"/>
	<down y="1683" x="777"/>
	<item text="Edit CUEs and POIs..." action="edit_poi" hascheck="false"/>
	<item text="Read-only (Lock)" action="lock_cues" hascheck="true"/>
	<item text="Smart Cue" action="smart_cue" hascheck="true"/>
	<item text="Quantize on Set" action="quantize_setcue" hascheck="true"/>
	<item text="-"/>
	<submenu text="Display mode">
		<item text="Cue number" action="cue_display 'number'" hascheck="true"/>
		<item text="Name" action="cue_display 'name'" hascheck="true"/>
		<item text="Time Pos" action="cue_display 'position'" hascheck="true"/>
		<item text="Time left" action="cue_display 'distance'" hascheck="true"/>
		<item text="Beats left" action="cue_display 'beat'" hascheck="true"/>
	</submenu>
</menu>
